OneVue Notify™ InfoBoard™
When Seconds Count
Whether for critical alerts, general messaging, or even managing time, the OneVue Notify InfoBoard™ solutions bring visual notification to your facility, especially in busy and noisy environments. In addition, visual notification provides a means of communicating to the hearing impaired.
OneVue Notify helps reach more people, more quickly.
EDUCATION
The average response time for emergency services in the USA is ten minutes. Most critical events are over in less than five minutes. OneVue Notify™ InfoBoard™ solutions help to alert entire buildings and campuses of critical situations in seconds, to help bring people to safety until emergency respondents arrive.
Invest in safety. During a fire, active shooter or critical weather emergency, seconds can make a difference. Speed up notifications in critical situations to help save lives.
- Keep students and staff aware and safe faster
- Visual messaging provides an extra layer of notification in critical situations
- Band and Choir rooms may not hear overhead announcements, or text alerts
- General messaging for events
- Use of bell controller keeps staff and students in sync and on time
Learn how one high school has implemented the Notify InfoBoard to enhance its emergency response plan and communications throughout the campus.
HEALTHCARE
Whether identifying appointed isolation and quarantined areas, displaying reminders of infection control and hygiene protocols, or navigating throughout the healthcare facility, InfoBoard solutions can easily and quickly help visually communicate.
In addition, when not communicating important messaging, InfoBoard can help keep staff on time and on schedule with synchronized time keeping. Keep accurate records of:
- Coded events
- On-time delivery of medication, testing and surgical procedures
- Harm or psychological events of patients
- Personnel shift changes
InfoBoard solutions can also be used in conjunction with a hospital’s emergency response plan, utilizing the critical notifications solution. Customize these notifications to fit into your current emergency response language and protocols.
Questions? Call 262-729-4858 to speak with a Primex representative.
Safety and Simplicity
The InfoBoard™ displays visual, critical alerts in seconds during emergency situations, as well as provide general messaging and time sync solutions.
- Post-incident reports for emergencies and critical situations
- Warning reports for alerts and unresponsiveness of the InfoBoard helps ensure they are functioning properly at all times
- Cloud-based software enables easy administration from any device with web browser
- Connect to a transmitter for institution-wide time synchronization
- Operates during power outages and network failures
- All-in-one critical alert, general messaging and date/time solution
- Customizable general messaging, date and time formatting
- Seven display colors w/ adjustable brightness and scrolling speed
- Red, green, blue, yellow, white, magenta, cyan

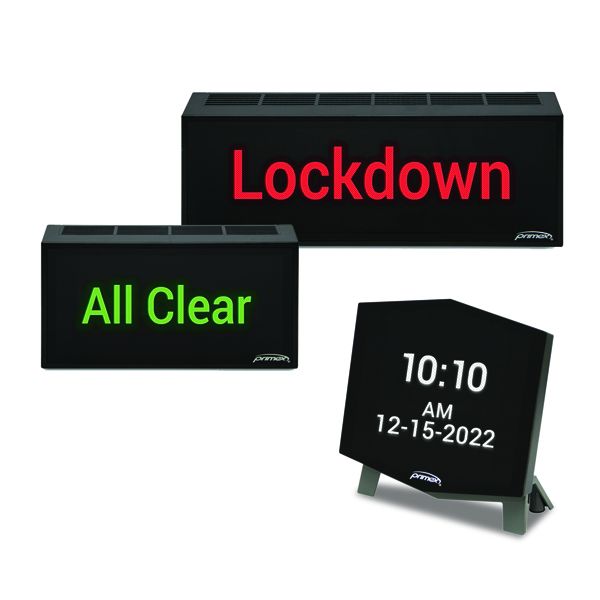

- InfoBoard comes in three sizes: large, medium, and mini
- Proudly engineered in the USA
Specifications
Power
- AC power supply: Input: 120 VAC (100- 240)/ 50–60 cycle, 0.6A. Output: 12V 2A. 10 ft. (3.0 m) cord with two-prong plug. UL/cUL listed.
- PoE: IEEE 802.3af. Maximum power consumption: 15.4 Watts (Class 3)
- Power outage memory backup 6 weeks at room temperature
Audible Tone*
- 100 dB internal speaker (Large, Medium InfoBoard)
Display*
- Digit LED colors: Red, Green, Blue, Yellow, Magenta, Cyan and White.
- Visible up to 150 ft. (45.7 m)
- Alternating time and date options
- Adjustable brightness levels
- Time and date format and color
- 64 character custom messaging with adjustable scroll speed.
Enclosure
- ABS plastic
- Junction box: UL listed (UL 50E 1st Ed; listing number E469550)
Connectivity Protocols
- 72MHz Wireless Frequency
- Bluetooth® Low Energy (BLE) Wireless Technology, version 4.1
- Ethernet 10/100, RJ45
- PoE IEEE 802.3af
Environmental
- Operating temperature range: 32°– 95°F (0°– 35°C)
- Storage temperature range: • -20°–185°F (-29°– 85°C)
Certifications
- FCC/IC/CE marked
*Limited features with non-subscription solution. Solutions: OneVue Notify Monitor (subscription). OneVue Notify Standalone (non-subscription). OneVue Notify PoE (non-subscription). All specifications are subject to change without notice.
Part Numbers
| Part Number | Model | Weight | Height | Width | Depth |
|---|---|---|---|---|---|
| NT2008A300 | Large InfoBoard - Surface Mount | 4.3 Lbs. (2.0kg) | 8.25” (21.0cm) | 20.875” (53.0cm) | 2.625” (6.7cm) |
| NT2008A200 | Medium InfoBoard - Surface Mount | 3.5 Lbs. (1.6kg) | 8.25” (21.0cm) | 14.576” (37.0cm) | 2.625” (6.7cm) |
| NT2008A100 | Mini InfoBoard | 1.85 Lbs. (0.8kg) | 9.625” (24.4cm) | 9.25” (23.5cm) | 2.25” (5.7cm) |
| NT1XSTND | Mini InfoBoard Desktop Stand | 0.15 Lbs. (0.07kg) | 2.25” (5.59cm) | 8.875” (22.5cm) | 3.5” (8.9cm) |
| NT2XBRK | Dual Mount Kit - Medium InfoBoard (Ceiling or Wall) | 2.0 Lbs. (0.9kg) | 12.375” (31.4cm) | 14.5” (36.8cm) | 6.75” (17.1cm) |
| NT3XBRK | Dual Mount Kit - Large InfoBoard (Ceiling Only) | 2.5 Lbs. (1.1kg) | 12.375” (31.4cm) | 20.75” (52.7cm) | 6.75” (17.1cm) |
| NTPANEL-250 | Critical Notification Panel - 250’ copper/tin wire | - | 4” (10.2cm) | 4” (10.2cm) | 0.25” (0.6cm) |
| NTPANEL-500 | Critical Notification Panel - 500’ copper/tin wire | - | 4” (10.2cm) | 4” (10.2cm) | 0.25” (0.6cm) |
| NTPANEL-1000 | Critical Notification Panel - 1000’ copper/tin wire | - | 4” (10.2cm) | 4” (10.2cm) | 0.25” (0.6cm) |
| Q13800 | Timer Control Switch | - | 4.5” (11.4cm) | 2.75” (7cm) | - |
